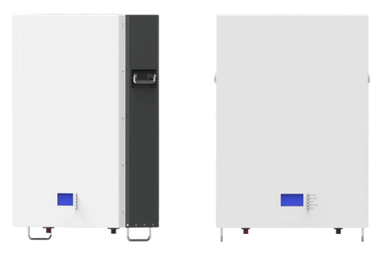

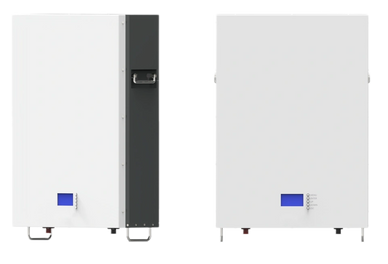

Residential BESS (Battery System)

Model: PRO-5000Wh

Model: PRO-10000Wh

Model: PRO-5000Wh

Battery Bank

Norminal Voltage: 51.2V (16 series)
Capacity: 100Ah
Energy: 5120Wh（5KWh)
≥5000 cycles @ 80% DOD, 25℃, 0.5C
Design Life: >10 years
Dimension: 680X485X180 mm
Weight: Approx 65kg
Parallel connection: Up to 10 batteries
Certification: UN38.3, MSDS, IEC62619(cell), UL1973(cell)
Compatible with 99.9% major brand inverters

REQUEST A QUOTE

Model: PRO-7000Wh

Model: PRO-10000Wh

Model: PRO-5000Wh

Battery Bank

Norminal Voltage: 51.2V (16 series)
Capacity: 150Ah
Energy: 7680Wh（7.5KWh)
≥5000 cycles @ 80% DOD, 25℃, 0.5C
Design Life: >10 years
Dimension: 680X485X180 mm
Weight: Approx 79kg
Parallel connection: Up to 10 batteries
Certification: UN38.3, MSDS, IEC62619(cell), UL1973(cell)
Compatible with 99.9% major brand inverters

REQUEST A QUOTE

Model: PRO-10000Wh

Model: PRO-10000Wh

Model: PRO-10000Wh

Battery Bank

Norminal Voltage: 51.2V (16 series)
Capacity: 200Ah
Energy: 10240Wh（10KWh)
≥5000 cycles @ 80% DOD, 25℃, 0.5C
Design Life: >10 years
Dimension: 680X485X220 mm
Weight: Approx 98kg
Parallel connection: Up to 10 batteries
Certification: UN38.3, MSDS, IEC62619(cell), UL1973(cell)
Compatible with 99.9% major brand inverters

REQUEST A QUOTE

Residential BESS (All-In-One Series)

Model: OW-1KW/2KWh

Model: OW-5KW/10KWh

Model: OW-1KW/2KWh

INVERTER
Max PV Input Power: 1200W
Rated Output Power: 1000W

AC INPUT
Input Voltage Range: 170-280VAC
Grid Type:1P (L+N+PE)

PV INPUT (DC)
Norminal/Max DC Voltage: 450VDC
MPPT Voltage Range: 120-430 VDC
MPPT Trackers: 2

GRID OUTPUT (AC)
AC Voltage Regulation: 230V±5%
No load Consumption: ≤5W
EU Efficiency @ Vnorminal: 93%
Transfer Time: 20ms
Pure Sine Wave Output

BATTERY MODE OUTPUT (AC)
Output Voltage: 208/220/230/240 VAC
Max Conversion Efficiency: 93%

BATTERY SPECIFICATIONS
Norminal Voltage: 24V
Capacity: 100Ah
Energy: 2400Wh (2.4KWh)
6000 cycles @ 80% DOD, 25℃
Dimension: 230X480X155 mm
Weight: Approx 23kg
Certification: UN38.3, UL, IEC, TUV
Communication: WiFi and GPRS

REQUEST A QUOTE

Model: OW-3KW/5KWh

Model: OW-5KW/10KWh

Model: OW-1KW/2KWh

INVERTER
Max PV Input Power: 2400W
Rated Output Power: 3000W

AC INPUT
Input Voltage Range: 170-280VAC
Grid Type: 1P (L+N+PE)

PV INPUT (DC)
Norminal/Max DC Voltage: 450VDC
MPPT Voltage Range: 120-430 VDC
MPPT Trackers: 2

GRID OUTPUT (AC)
AC Voltage Regulation: 230V±5%
No load Consumption: ≤5W
EU Efficiency @ Vnorminal: 93%
Transfer Time: 20ms
Pure Sine Wave Output

BATTERY MODE OUTPUT (AC)
Output Voltage: 208/220/230/240 VAC
Max Conversion Efficiency: 93%

BATTERY SPECIFICATIONS
Norminal Voltage: 51.2V
Capacity: 100Ah
Energy: 5120Wh (5.1KWh)
6000 cycles @ 80% DOD, 25℃
Dimension: 235X485X195 mm
Weight: Approx 35kg
Certification: UN38.3, UL, IEC, TUV
Communication: WiFi and GPRS

REQUEST A QUOTE

Model: OW-5KW/10KWh

Model: OW-5KW/10KWh

Model: OW-5KW/10KWh

All-In-One Battery Backup System

INVERTER
Max PV Input Power: 6000W
Rated Output Power: 5000W

AC INPUT
Input Voltage Range: 170-280VAC
Grid Type: 1P (L+N+PE)

PV INPUT (DC)
Norminal/Max DC Voltage: 450VDC
MPPT Voltage Range: 120-430 VDC
MPPT Trackers: 2

GRID OUTPUT (AC)
AC Voltage Regulation: 230V±5%
No load Consumption: ≤5W
EU Efficiency @ Vnorminal: 93%
Transfer Time: 20ms
Pure Sine Wave Output

BATTERY MODE OUTPUT (AC)
Output Voltage: 208/220/230/240 VAC
Max Conversion Efficiency: 93%

BATTERY SPECIFICATIONS
Norminal Voltage: 51.2V
Capacity: 200Ah
Energy: 10240Wh (10KWh)
6000 cycles @ 80% DOD, 25℃
Dimension: 1025X485X195 mm
Weight: Approx 85kg
Certification: UN38.3, UL, IEC, TUV
Communication: WiFi and GPRS

REQUEST A QUOTE

Residential BESS (Grid Outdoor All-In-One Stackable Series)

Model: TG-8KH3E

Model: TG-10KH3E

Model: TG-10KH3E

All-In-One Battery Backup System (with PCS)

INVERTER
Max PV Input Power: 10000W
Rated Output Power: 8800W

AC INPUT
Input Voltage Range: 170-280VAC
Grid Type: 3W+N+PE

PV INPUT (DC)
Norminal/Max DC Voltage: 1000VDC
MPPT Voltage Range: 180-850 VDC
MPPT Trackers: 2

GRID OUTPUT (AC)
AC Voltage Regulation: 230V±5%
No load Consumption: ≤5W
EU Efficiency @ Vnorminal: 93%
Transfer Time: 20ms
Pure Sine Wave Output

BATTERY MODE OUTPUT (AC)
Output Voltage: 208/220/230/240 VAC
Max Conversion Efficiency: 97.9%

BATTERY SPECIFICATIONS
Norminal Voltage: 204.8V
Capacity: 100Ah
Energy: 20.48KWh（20KWh)
4000 cycles @ 80% DOD, 25℃
Dimension: 1170X830X547 mm
Weight: Approx 280kg
Certification: UN38.3, UL, IEC, TUV
Communication: WiFi and 4G
IP65 Rain proof design, ulltra quite

REQUEST A QUOTE

Model: TG-10KH3E

Model: TG-10KH3E

Model: TG-10KH3E

INVERTER
Max PV Input Power: 13000W
Rated Output Power: 11000W

AC INPUT
Input Voltage Range: 170-280VAC
Grid Type: 3W+N+PE

PV INPUT (DC)
Norminal/Max DC Voltage: 1000VDC
MPPT Voltage Range: 180-850 VDC
MPPT Trackers: 2

GRID OUTPUT (AC)
AC Voltage Regulation: 230V±5%
No load Consumption: ≤5W
EU Efficiency @ Vnorminal: 93%
Transfer Time: 20ms
Pure Sine Wave Output

BATTERY MODE OUTPUT (AC)
Output Voltage: 208/220/230/240 VAC
Max Conversion Efficiency: 97.9%

BATTERY SPECIFICATIONS
Norminal Voltage: 307.2V
Capacity: 100Ah
Energy: 30.72Wh（30KWh)
4000 cycles @ 80% DOD, 25℃
Dimension: 1510X830X547 mm
Weight: Approx 370kg
Certification: UN38.3, UL, IEC, TUV
Communication: WiFi and 4G
P65 Rain proof design, ulltra quite

REQUEST A QUOTE

Model: TG-12KH3E

Model: TG-10KH3E

Model: TG-12KH3E

INVERTER
Max PV Input Power: 15000W
Rated Output Power: 13000W

AC INPUT
Input Voltage Range: 170-280VAC
Grid Type: 3W+N+PE

PV INPUT (DC)
Norminal/Max DC Voltage: 1000VDC
MPPT Voltage Range: 180-850 VDC
MPPT Trackers: 2

GRID OUTPUT (AC)
AC Voltage Regulation: 230V±5%
No load Consumption: ≤5W
EU Efficiency @ Vnorminal: 93%
Transfer Time: 20ms
Pure Sine Wave Output

BATTERY MODE OUTPUT (AC)
Output Voltage: 208/220/230/240 VAC
Max Conversion Efficiency: 97.9%

BATTERY SPECIFICATIONS
Norminal Voltage: 409.6V
Capacity: 100Ah
Energy: 40.96Wh（40KWh)
4000 cycles @ 80% DOD, 25℃
Dimension: 1850X830X547 mm
Weight: Approx 470kg
Certification: UN38.3, UL, IEC, TUV
Communication: WiFi and 4G
IP65 Rain proof design, ulltra quite

REQUEST A QUOTE

Residential BESS (On/Off Grid All-In-One Stackable Series)

Model: TG5510-EY1A1

Model: TG5510-EY1A1

Model: TG5510-EY1A1

All-In-One Battery Backup System

INVERTER
Max PV Input Power: 6500W
Rated Output Power: 5500W
Max Charging Power: 5000W

AC INPUT
Input Voltage Range: 170-280VAC
Grid Type: L+N+PE

PV INPUT (DC)
Norminal/Max DC Voltage: 360VDC/500VDC
MPPT Voltage Range: 120-450 VDC
MPPT Trackers: 2

GRID OUTPUT (AC)
AC Voltage Regulation: 230V±5%
No load Consumption: ≤75W
EU Efficiency @ Vnorminal: 93%
Transfer Time: 20ms
Pure Sine Wave Output

BATTERY MODE OUTPUT (AC)
Output Voltage: 208/220/230/240 VAC
Max Conversion Efficiency: 93%

BATTERY SPECIFICATIONS
Norminal Voltage: 51.2V (16 series)
Capacity: 200Ah
Energy: 10.24KWh（10KWh)
4000 cycles @ 80% DOD, 25℃
Dimension: 214X621X1205 mm
Weight: Approx 140kg
Certification: UN38.3, MSDS, CE, EMC
Communication: WiFi and RS232

REQUEST A QUOTE

Model: TG8810-EY1A1

Model: TG5510-EY1A1

Model: TG5510-EY1A1

All-In-One Battery Backup System

INVERTER
Max PV Input Power: 8000W
Rated Output Power: 8000W
Max Charging Power: 6000W(Grid)

AC INPUT
Input Voltage Range: 170-280VAC
Grid Type: L+N+PE

PV INPUT (DC)
Norminal/Max DC Voltage: 360VDC/500VDC
MPPT Voltage Range: 90-450 VDC
MPPT Trackers: 2

GRID OUTPUT (AC)
AC Voltage Regulation: 230V±5%
No load Consumption: ≤75W
EU Efficiency @ Vnorminal: 93%
Transfer Time: 20ms
Pure Sine Wave Output

BATTERY MODE OUTPUT (AC)
Output Voltage: 208/220/230/240 VAC
Max Conversion Efficiency: 93%

BATTERY SPECIFICATIONS
Norminal Voltage: 51.2V (16 series)
Capacity: 200Ah
Energy: 10.24KWh（10KWh)
4000 cycles @ 80% DOD, 25℃
Dimension: 214X621X1205 mm
Weight: Approx 140kg
Certification: UN38.3, MSDS, CE, EMC
Communication: WiFi and RS232

REQUEST A QUOTE

Model: TG8820-EY1A1

Model: TG5510-EY1A1

Model: TG8820-EY1A1

All-In-One Battery Backup System

INVERTER
Max PV Input Power: 8000W
Rated Output Power: 8000W
Max Charging Power: 6000W(Grid)

AC INPUT
Input Voltage Range: 170-280VAC
Grid Type: L+N+PE

PV INPUT (DC)
Norminal/Max DC Voltage: 360VDC/500VDC
MPPT Voltage Range: 90-450 VDC
MPPT Trackers: 2

GRID OUTPUT (AC)
AC Voltage Regulation: 230V±5%
No load Consumption: ≤75W
EU Efficiency @ Vnorminal: 93%
Transfer Time: 20ms
Pure Sine Wave Output

BATTERY MODE OUTPUT (AC)
Output Voltage: 208/220/230/240 VAC
Max Conversion Efficiency: 93%

BATTERY SPECIFICATIONS
Norminal Voltage: 51.2V (16 series)
Capacity: 400Ah
Energy: 20.48KWh（20KWh)
4000 cycles @ 80% DOD, 25℃
Dimension: 214X612X1755 mm
Weight: Approx 235kg
Certification: UN38.3, MSDS, CE, EMC
Communication: WiFi and RS232

REQUEST A QUOTE
